Laser Falcon Methane Detector Bundle
Laser Falcon Methane Detector Bundle

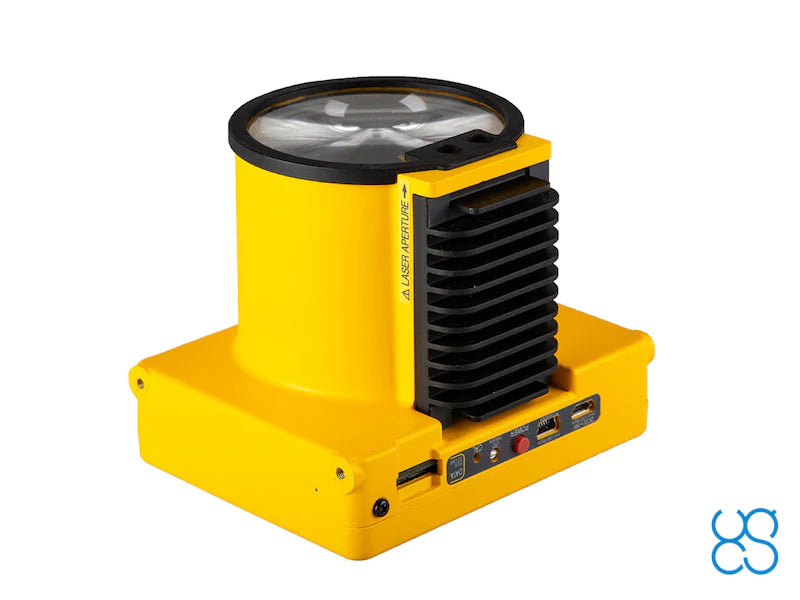

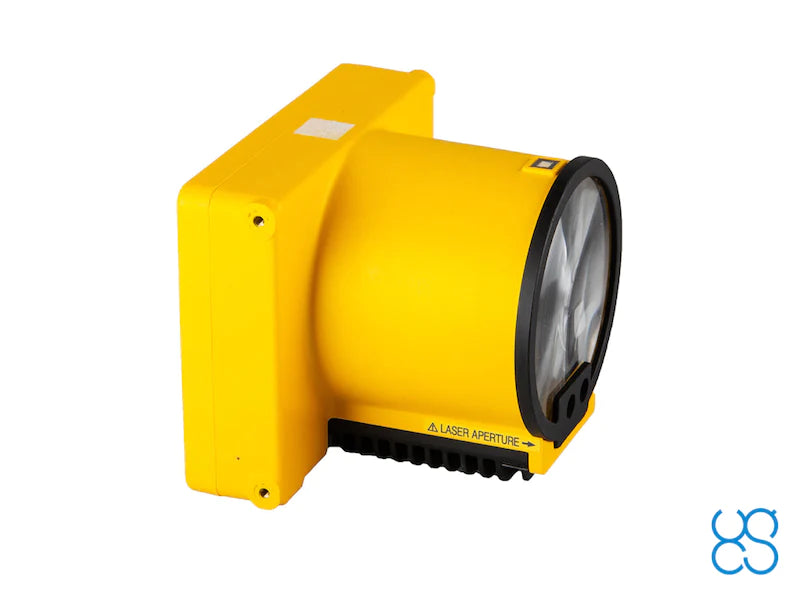

Laser Falcon exclusively detects methane, ensuring the absence of erroneous gas identifications. Classified as a class 3R laser, it maintains eye-safe operations.
The underlying principle draws from Infrared Absorption Spectroscopy. The laser emits light within the 1.65 μm spectral range. This emitted light reflects back, subsequently captured by the sensor. A comparison between outgoing and incoming signals occurs utilizing the integrated reference cell. Whenever methane resides in the laser's path, a fraction of the laser light is absorbed. An algorithm then computes the gas concentration, measured in ppm×m (parts per million multiplied by meters). This calculated value promptly transmits to both the drone pilot's remote control (RC) and the UgCS software.

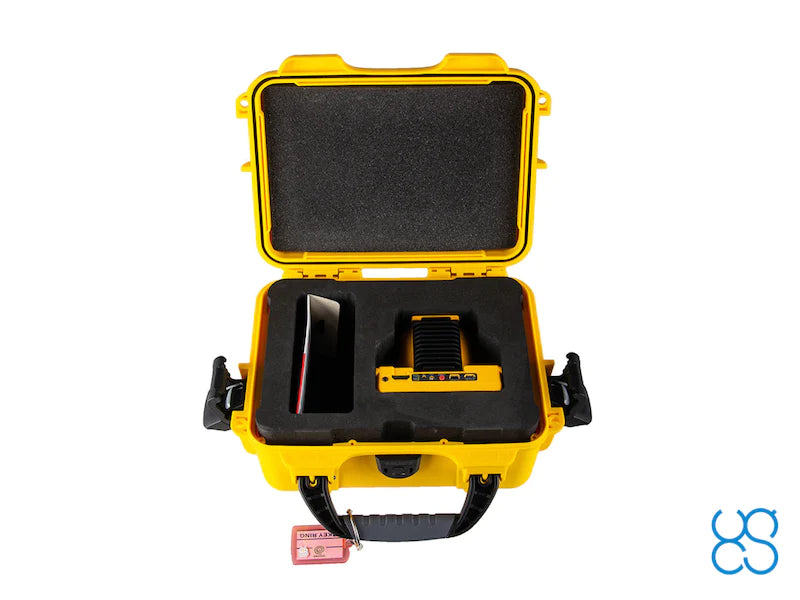

This Bundle includes:
- Laser Falcon Methane Detector

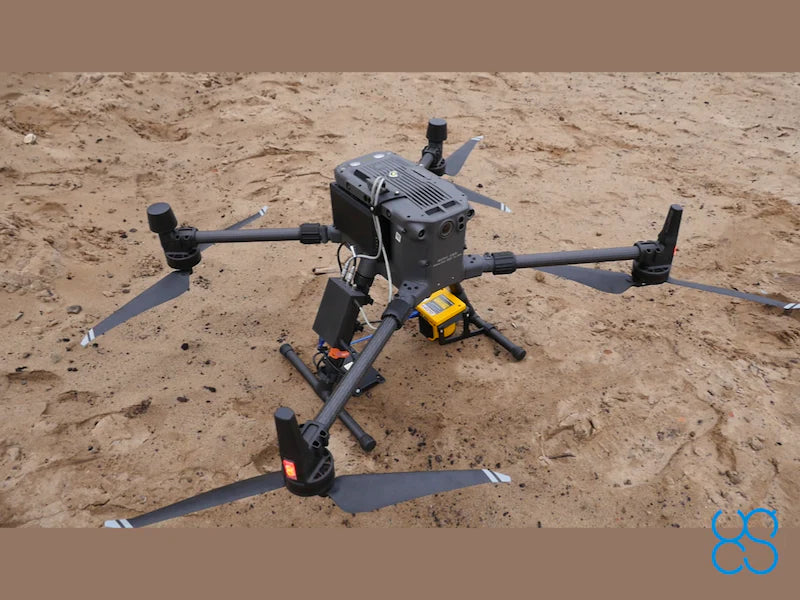

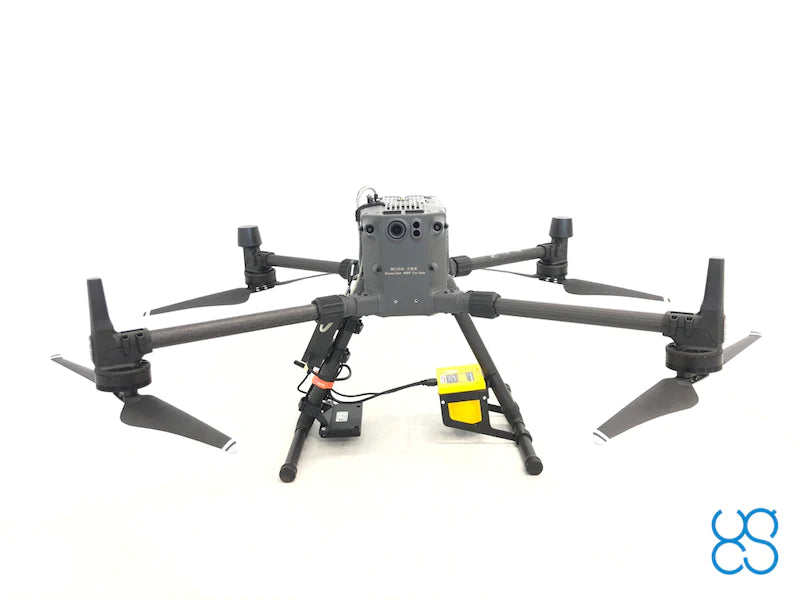

- Laser Falcon Methane Detector mount for Dji M300/M350 RTK
- LMC Process Software License
- Training: Methane leak detection using drones
- Skyhub software package for Methane detector
- Skyhub onboard computer hardware
- True terrain following feature for Dji M300/M350 RTK
- Training: UgCS basics
- Training: UgCS area scan and True terrain following missions
- UgCS expert perpetual license
- UgCS mapper perpetual license
- Obstacle detection radar for Dji M300/M350 RTK"
