DJI Power Solar Panel Adapter Module MPPT
DJI Power Solar Panel Adapter Module MPPT
SPECIAL ORDER - CHECK STOCK
When a DJI Power-series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can link solar panels through the XT60 interface on the adapter panel for eco-friendly recharging of the DJI Power series. It is recommended to use the DJI Power-series power stations in conjunction with solar panels from the DJI-certified brand Zignes. If using solar panels from other brands, using the MPPT module and a conversion of the solar panel port to the XT60 interface are necessary to enable solar recharging for the DJI Power series.
* Required accessories are sold separately.

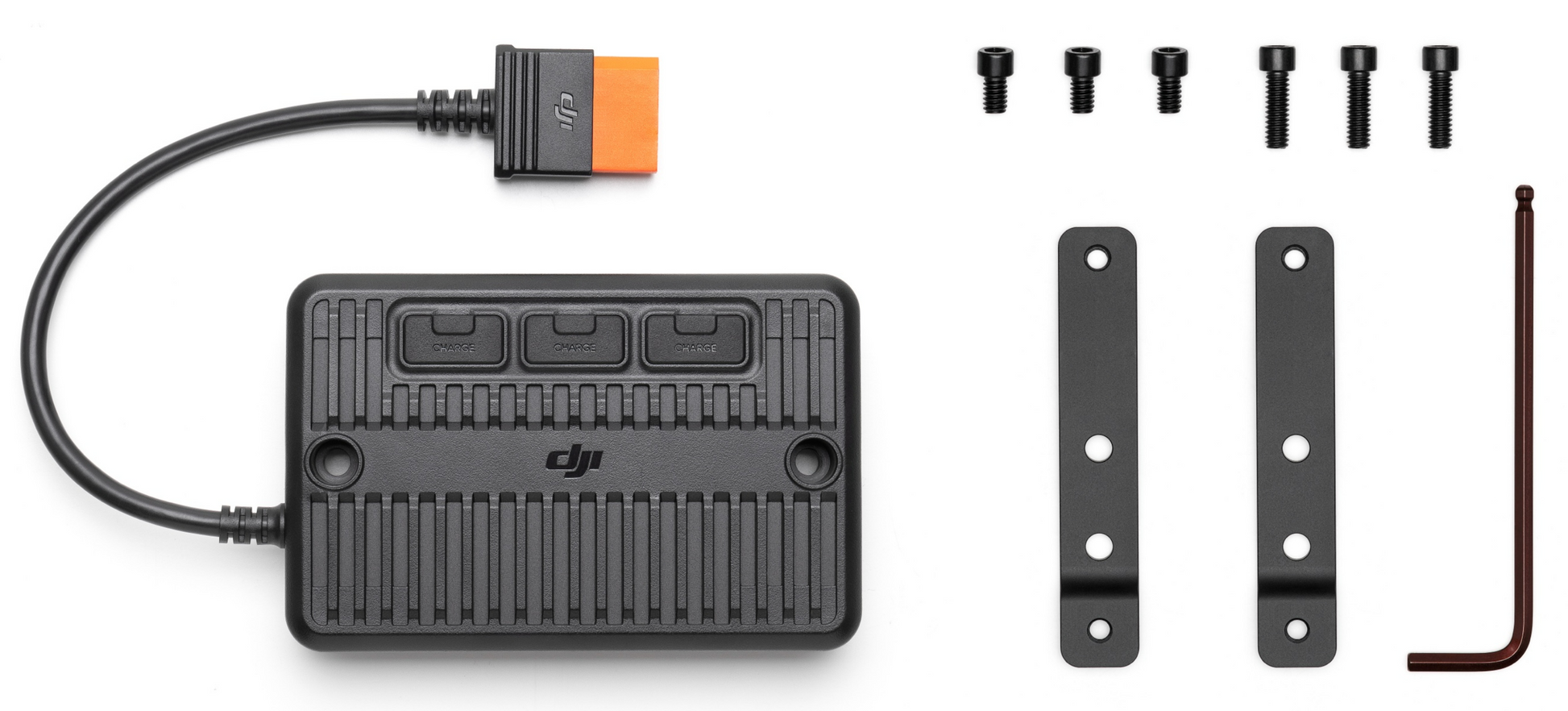

In The Box
DJI Power Solar Panel Adapter Module (MPPT) × 1
Metal Heat Dissipation Bracket × 2
Ball-End Hey Key × 1
10mm Screw × 3
20mm Screw × 3
Specifications
Max 400 W (with DJI Power 1000)
Max 300 W (with DJI Power 500)
Input Voltage: 12-30 V, DC
Max Input Current: Single Channel: 10 A, Triple Channels: 16 A
Operating Temperature: -10° to 45° C (41° to 113° F)
Compatibility
DJI Power 1000
DJI Power 500
